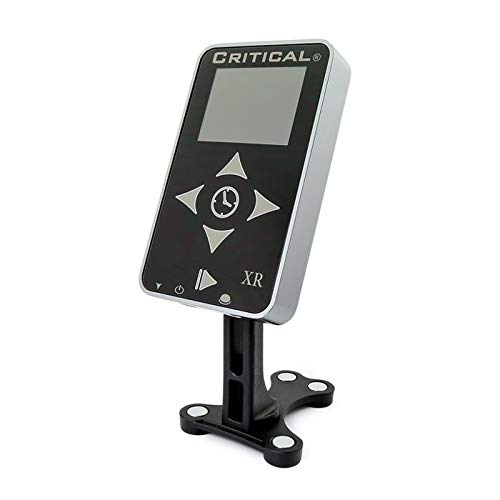

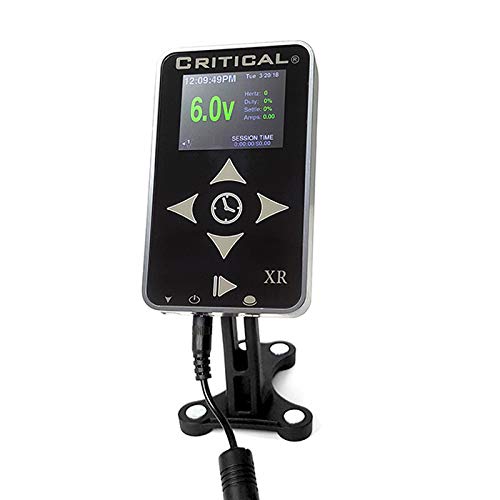

Critical XR Tattoo Power Supply

The XR Power Supply comes with high-quality amphenol 1/4” jacks, allowing for the most steady power delivery; it is compatible with both standard RCAcords and foot pedals if desired (although a foot pedal is not required to operate, as this power supply has a pedal override mode). It has two foot pedal modes — maintained and momentary — as well as a jumpstart mode for hard starting tattoo machines. The Critical XR Power Supply is compatible with all coil and rotary machines.

Specifications:

Precision Regulated Set Point Voltage: 0–18V DC
Compatible with all coil and rotary machines
Easy-to-read, full-color TFT display; configurable color scheme
Convenient touch user interface
Non-volatile memory ensures voltage presets are maintained even when power is removed
Assign jumpstart feature/maintained pedal modes to preset/output buttons
0.1volt adjustment resolution
Oscilloscope function displays cycle time
Two foot pedal modes — maintained or momentary
Universal input (90–240AC 50/60Hz)
Output Voltage: 18v 36W
High-quality amphenol 1/4” jacks for durability and high power delivery
Compatible with standard clip cords and foot pedals (foot pedal not required to run)
Hybrid billing mode allows automated user inputs
Peak Current: 4 amp
Continuous Current: 2 amp
CNC-machine billet aluminum housing
Equipped with magnetic mounting system for configurable set-up
Automatically powers down after 15 minutes of inactivity
Built-in short circuit protection

Easy-to-read, Full-Color TFT Display; Configurable Color Scheme
Two Foot Pedal Modes — Maintained or Momentary
Universal Input (90–240AC 50/60Hz)
CNC-Machine Billet Aluminum Housing
Automatically Powers Down After 15 Minutes of Inactivity
